Description

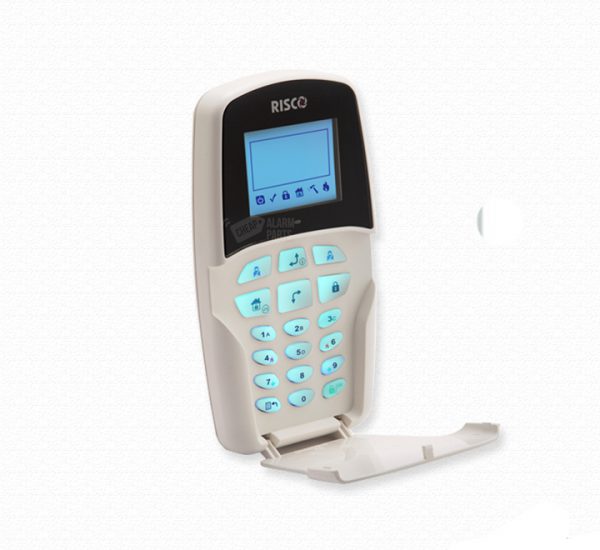

Lightsys LCD keypad
• Current consumption: 13.8VDC +/-10%, 48 mA typical/52 mA max
• 4-wire Bus connection, up to 300 meters from main panel
• Backlit display
• 3 Emergency operations: panic, fire and medical
• Display date and time, zone information and maintenance information
• Front cover and back tamper
• Keypad settings: brightness, contrast and buzzer volume.
Lightsys LCD Keypad for Alarm Systems Technical Specifications
Current consumption
RP432 KP
RP432 KPP
13.8V +/-10%, 48 mA typical/52 mA max.
13.8V +/-10%, 62 mA typical/130 mA max.
Main panel connection 4-wire BUS, up to 300 m (1000 ft) from Main Panel
Dimensions 153 x 84 x 28 mm (6.02 x 3.3 x 1.1 inch)
Operating temperature -10°C to 55°C (14°F to 131°F)
Storage temperature -20°C to 60°C (-4°F to 140°F)
Prox. RF frequency 13.56MHz
Complies with EN 50131-3 Grade 2 Class II
Keypad is equipped with:
Three emergency key zones (panic, fire, and emergency)
The ability to produce a duress (ambush) code
Optional proximity tags (different part number)
Double tamper-protection
Internal buzzer
Audible feedback for keypad operations
Easy-to-use hot-key sequences for simple zone bypassing
A one-key quick-arm feature for both “Stay” and “Away”
In partitioned systems, keypads can be selectively assigned to specific partitions
Four function keys (A,B,C,D) can be programmed to carry a sequence of commands.
